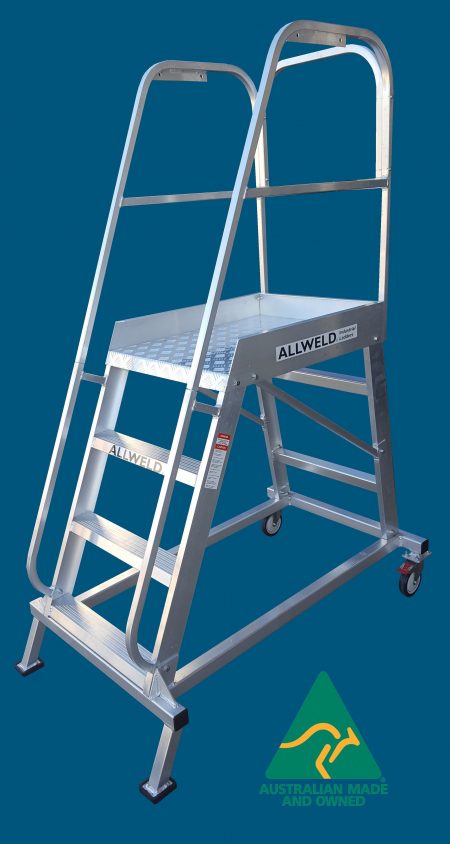

Big, robust, and fully welded
Allweld Industrial Ladders manufactures a range of fully welded Order Pickers. These big robust units are available with a platform height from 500mm high through to 3000mm high.
A wider than standard base ensures maximum stability. Allweld doesn’t reduce the quality or amount of material used in order to “penny pinch” in the production process.
Steps are an 80mm wide extrusion with non-slip grooves embedded to maximise grip.
Handrails run up both sides of the ladder for comfort and safety.
A 100mm toe-board runs around the edge of the platform which not only adds to safety but strength of the platform. It also keeps foreign material from falling off the platform.
The unit has a 150kg load rating.
The platform itself is constructed from 2.5mm reinforced chequer-plate. The large 700mm wide platform provides plenty of room to work from. Platforms up to a height of 1250mm have a platform 700mm long. Platforms with a height exceeding 1250mm have a platform length of 900mm.
Units can be customised to suit varying applications. A safety gate can be fabricated to fully enclose the operator on the platform and/or a safety gate can be fitted to allow access off the platform. If access is required against a solid wall slight adjustments can be made to the legs during fabrication to enable positioning flush with the wall.
The Allweld Order Picker is becomming popular for use as a truck washing platform with many carriers opting for an OP200.
Larger wheels can be fitted if the units are required to negotiate rough surfaces.
The units are manoeuvred like a wheel barrow, the operator lifts one end and wheels it to the required position. The handrails are designed to double as a convenient lifting point.
