A-Justa-Foot: Fixed
- Description
- Additional information
Description
Fixed A-Justa-Foot™ (Mild Steel) 40 Series

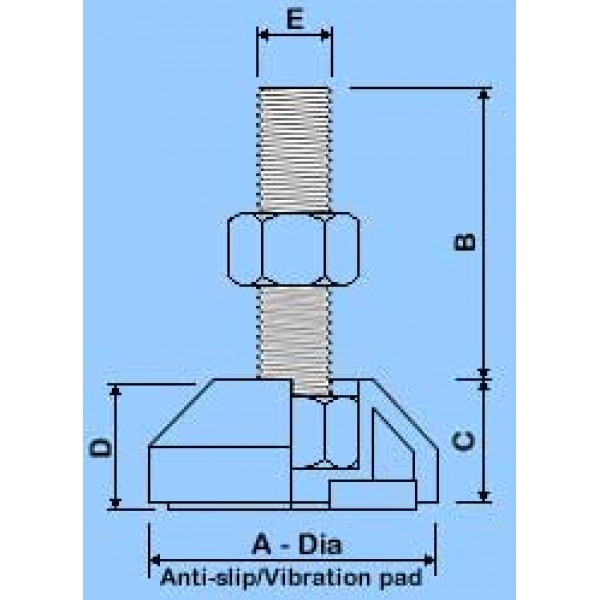

| Part No. | Old Part No. | Size | A | B | D | E | Rating |
| 40/40/M8/35 | 4000 | 40xM8 | 40 | 35 | 20 | M8 | 350kg |
| 40/40/M10/35 | 4001 | 40xM10 | 40 | 35 | 20 | M10 | 500kg |
| 40/60/M12/60 | 4002 | 60xM12 | 60 | 60 | 25 | M12 | 800kg |
Fixed A-Justa-Foot™ (Stainless Steel) 41 Series
| Part No. | Old Part No. | Size | A | B | D | E | Rating |
| 41/40/M8/35 | 4100 | 40xM8 | 40 | 35 | 20 | M8 | 350kg |
| 41/40/M10/35 | 4101 | 40xM10 | 40 | 35 | 20 | M10 | 500kg |
| 41/60/M12/60 | 4102 | 60xM12 | 60 | 60 | 25 | M12 | 800kg |
Fixed A-Justa-Foot™ is available in other stud lengths (B) as required
Additional information
